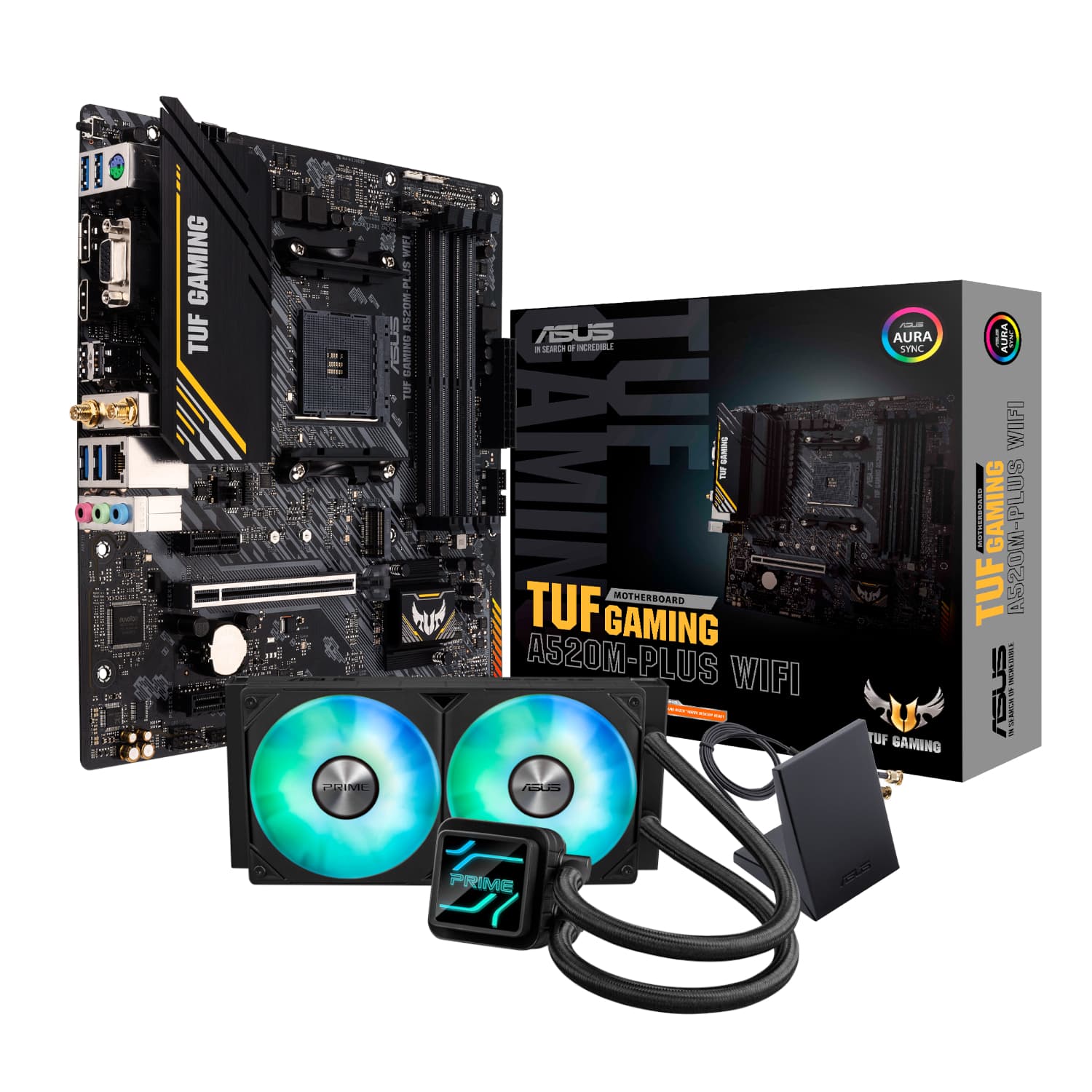

Asus TUF Gaming A520M-PLUS WiFi AM4 and Asus Prime LC 240 ARGB Liquid CPU Cooler Bundle

SPECIFICATIONS:

• Asus TUF Gaming A520M-PLUS WiFi AM4 M-ATX Gaming Motherboard
• CPU: AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
• Chipset: AMD A520 Chipset
• Memory:
  • 4 x DIMM, Max. 128GB, DDR4
  • 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)
  • 3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • * ECC memory (ECC mode) support varies by CPU.
• Graphics:
  • 1 x DisplayPort 1.2
  • 1 x HDMITM 2.1(4K@60Hz)
  • 1 x D-Sub
  • * Graphics specifications may vary between CPU types.
• Expansion Slots:
  • AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
  • 1 x PCIe 3.0 x16 slot (supports x16 mode)
  • AMD A520 Chipset
  • 2 x PCIe 3.0 x1 slots
• Storage:
  • AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
  • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
  • AMD A520 Chipset
  • 4 x SATA 6Gb/s ports
  • Support RAID 0, 1, 10
• Ethernet:
  • 1 x Realtek 1Gb Ethernet
  • TUF LANGuard
• Wireless & Bluetooth:
  • Realtek Wi-Fi 5 8821CE
  • 1x1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO
  • Supports dual frequency band 2.4/5GHz
  • Supports channel bandwidth: HT20/HT40/HT80
  • Bluetooth v5.0
• Rear USB (Total 6 ports):
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 6 ports):
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 3 USB 2.0 ports
• Audio:
  • Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*
  • Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
• Audio Features:
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
• Back Panel I/O Ports:
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x D-Sub
  • 1 x ASUS Wi-Fi Module
  • 1 x Realtek 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x BIOS FlashBack™ button
  • 1 x PS/2 Keyboard/Mouse combo port
• Operating System: Windows 10 64-bit
• Form Factor: Micro-ATX
• ASUS Prime LC 240 ARGB Liquid CPU Cooler
• Water Block
• Water block dimension: 6.51 x 6.0.6 x 6.85 cm
• Block Material (CPU Plate): Copper
• Radiator
• Radiator Dimension: 27.7 x 12 x 2.7 cm
• Tube: Sleeved Rubber tube
• Tube Length: 40 cm
• Fans
• Dimension:24 x 12.3 x 2.5 cm
• Size: 2 x Fan Slots (12cm)
• Speed: 600 – 2200 RPM +/- 10%
• Control Mode: PWM/ DC
• Noise: 34 dB(A)
• Air Flow: 75.7 CFM
• Static Pressure: 3.2 mmH2O
• Special Features
• AURA Sync Support: Yes
• Compatibility
• Intel LGA 1851, 1700, 1200, 115x
• AMD: AM5,AM4

WHAT’S IN THE BOX:

• Asus TUF Gaming A520M-PLUS WiFi AM4 M-ATX Gaming Motherboard – Black x1
• ASUS Prime LC 240 ARGB Liquid CPU Cooler x1
• Quick Start Guide x1
• Accessory Pack of Screws and Brackets x1
