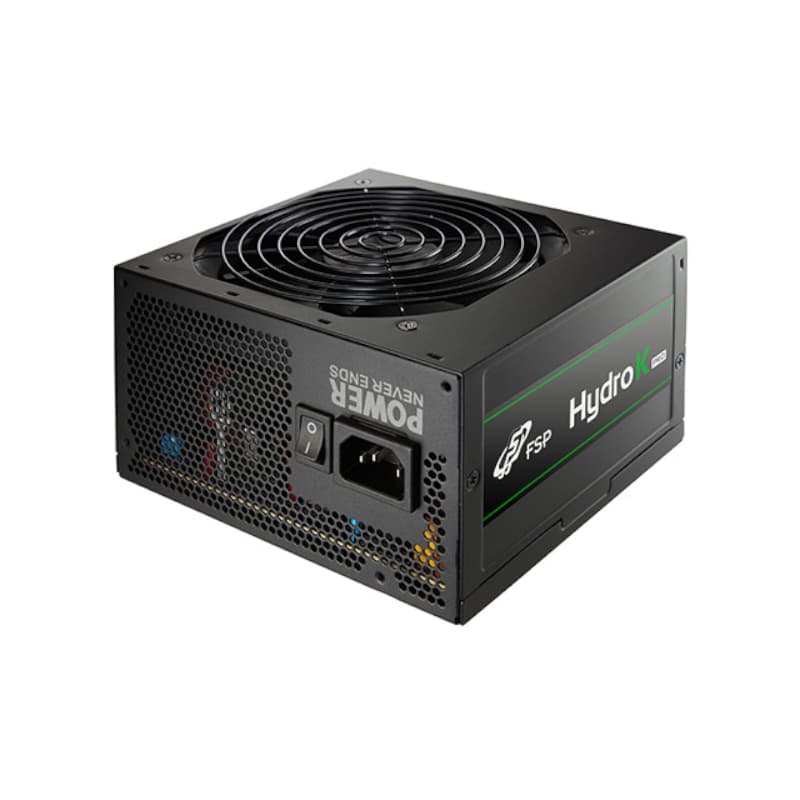

FSP Hydro Pro K 600W Non-Modular PSU

The new Hydro K Pro PSUs comply fully with ATX12 v2.52 standard and the latest safety 62368 regulation as well and comes with high-grade ribbon cables, give your PC a polished look. The Hydro K Pro series is designed as a powerful single +12V rail that continually delivers maximum performance for the most demanding graphic cards, while FSP’s custom DC-DC design provides safety and power efficiency. Besides, with a 230V 80 Plus® rating, delivers over 88% high efficiency and low noise levels thanks to its hydraulic bearing fan design, where a large 120mm fan takes care of cooling duties when required, making it excellent for situations that are sensitive to size and noise.

FEATURES:

• Intel latest CPU ready
• Global safety approved
• Active PFC ≥ 0.9
• High efficiency ≧ 88%
• Powerful +12V single rail design
• Hold up time ≥ 17ms @ 80% load
• Double layer EMI filter
• 120mm hydraulic bearing (HYB) fan
• +5V & 3.3V DC to DC module design
• All black cables
• Complete protections: OCP/OVP/OPP/SCP

SPECIFICATIONS:

• Rated Output Power: 600W
• Form Factor: ATX
• 80 PLUS Certification: 80 PLUS® 230V Bronze
• Input Voltage: 200-240V
• Input Current: 4.5A
• Input Frequency: 50-60Hz
• PFC: Active PFC
• Efficiency: ≥ 88%
• Fan Type: HYB Fan, 120mm
• Protection: OCP, OVP, SCP, OPP
• Cable Connections:
  • ATX 20+4 x 1
  • 4+4 PIN x 2
  • PCI-E 6+2 x 2
  • SATA x 5
  • Molex (PERIPHERAL) x 2
  • Floppy x 1
• Dimensions: 15 x 14 x 8.6 cm
