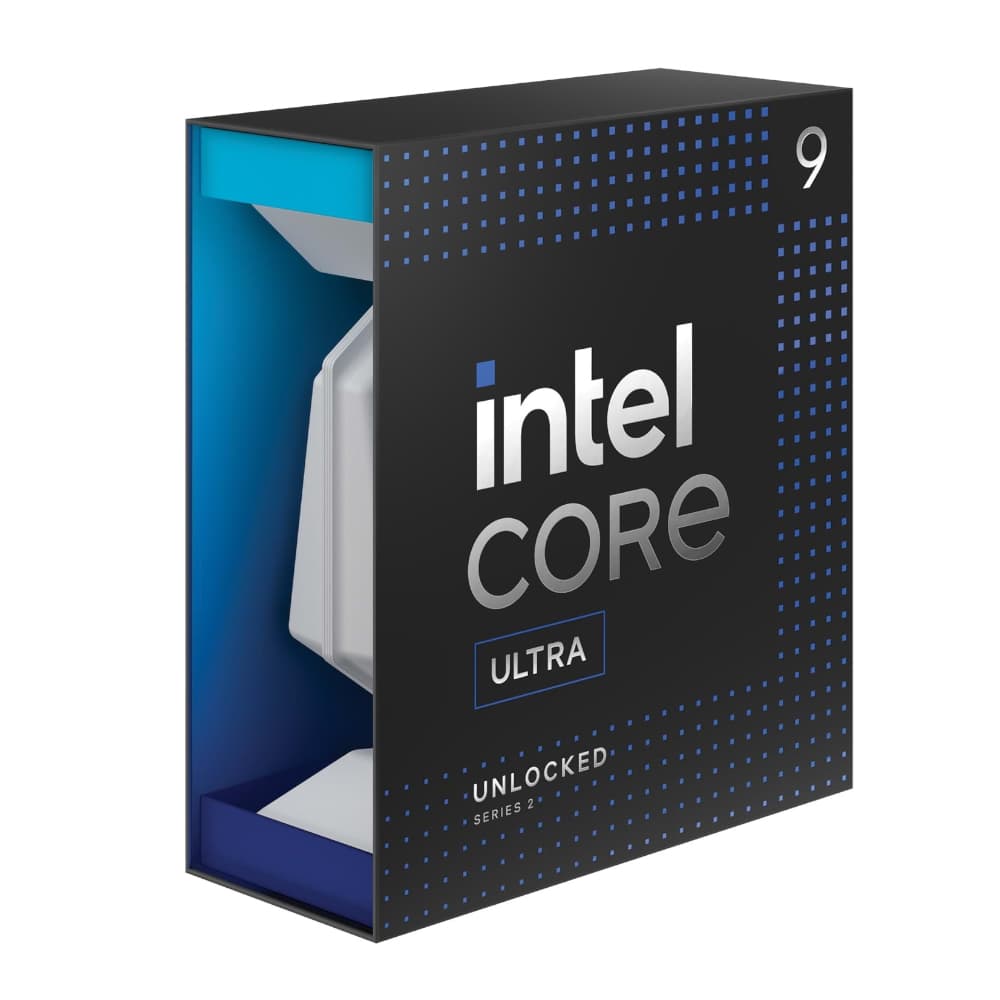

Intel Core Ultra 9 285K LGA1851 3.7Ghz 24-Core CPU

SPECIFICATIONS:

• Essentials:
  • Product Collection: Intel® Core™ Ultra Processors (Series 2)
  • Code Name: Products formerly Arrow Lake
  • Vertical Segment: Desktop
  • Processor Number: 285K
• CPU Specifications:
  • Total Cores: 24
  • # of Performance-cores: 8
  • # of Efficient-cores: 16
  • Total Threads: 24
  • Max Turbo Frequency: 5.70GHz
  • Intel® Thermal Velocity Boost Frequency: 5.70GHz
  • Intel® Turbo Boost Max Technology 3.0 Frequency: 5.60GHz
  • Performance-core Max Turbo Frequency: 5.50GHz
  • Efficient-core Max Turbo Frequency: 4.60GHz
  • Performance-core Base Frequency: 3.70GHz
  • Efficient-core Base Frequency: 3.20GHz
  • Cache: 36 MB Intel® Smart Cache
  • Total L2 Cache: 40 MB
  • Processor Base Power: 125 W
  • Maximum Turbo Power: 250 W
  • Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
  • AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
• Memory Specifications:
  • Max Memory Size (dependent on memory type): 192 GB
  • Memory Types: Up to DDR5 6400 MT/s
  • Maximum Memory Speed: 6400MHz
  • Max # of Memory Channels: 2
  • ECC Memory Supported: Yes
• Expansion Options:
  • Direct Media Interface (DMI) Revision: 4.0
  • Max # of DMI Lanes: 8
  • Intel® Thunderbolt™ 4: Yes
  • Scalability: 1S Only
  • PCI Express Revision: 5.0 and 4.0
  • PCI Express Configurations: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
  • Max # of PCI Express Lanes: 24
• Processor Graphics:
  • Processor Graphics: Intel® Graphics
  • Graphics Base Frequency: 300 MHz
  • Graphics Max Dynamic Frequency: 2.00GHz
  • Graphics Output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b
  • X^e-cores: 4
  • Max Resolution (HDMI): 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
  • Max Resolution (DP): 8K @ 60Hz
  • Max Resolution (eDP – Integrated Flat Panel): 4K @ 60Hz
  • DirectX Support: 12
  • OpenGL Support: 4.5
  • OpenCL Support: 3
  • Intel® Quick Sync Video: Yes
  • # of Displays Supported: 4
  • Device ID: 0x7D67
  • Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
• NPU Specifications:
  • NPU Name: Intel® AI Boost
  • NPU Peak TOPS (Int8): 13
  • Sparsity Support: Yes
  • Windows Studio Effects Support: Yes
  • AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
• Advanced Features:
  • Intel® Volume Management Device (VMD): Yes
  • Intel® Gaussian & Neural Accelerator: 3.5
  • Intel® Thread Director: Yes
  • Intel® Speed Shift Technology: Yes
  • Intel® Thermal Velocity Boost: Yes
  • Intel® Turbo Boost Max Technology 3.0: Yes
  • Intel® Turbo Boost Technology: 2.0
  • Intel® 64: Yes
  • Instruction Set: 64-bit
  • Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
  • Idle States: Yes
  • Enhanced Intel SpeedStep® Technology: Yes
  • Thermal Monitoring Technologies: Yes
• Security & Reliability
  • Intel vPro® Eligibility: Intel vPro® Enterprise, Intel vPro® Platform
  • Intel® Threat Detection Technology (TDT): Yes
  • Intel® Active Management Technology (AMT): Yes
  • Intel® Standard Manageability (ISM): Yes
  • Intel® Remote Platform Erase (RPE): Yes
  • Intel® One-Click Recovery: Yes
  • Intel® Hardware Shield Eligibility: Yes
  • Intel® Control-Flow Enforcement Technology: Yes
  • Intel® Total Memory Encryption - Multi Key: Yes
  • Intel® AES New Instructions: Yes
  • Secure Key: Yes
  • Intel® Trusted Execution Technology: Yes
  • Execute Disable Bit: Yes
  • Intel® OS Guard: Yes
  • Intel® Boot Guard: Yes
  • Mode-based Execute Control (MBEC): Yes
  • Intel® Stable IT Platform Program (SIPP): Yes
  • Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
  • Intel® Virtualization Technology (VT-x): Yes
  • Intel® Virtualization Technology for Directed I/O (VT-d): Yes
  • Intel® VT-x with Extended Page Tables (EPT): Yes

WHAT’S IN THE BOX:

• Intel® Core™ Ultra 9 285K LGA1851 5.70GHz 24-Core CPU x1
