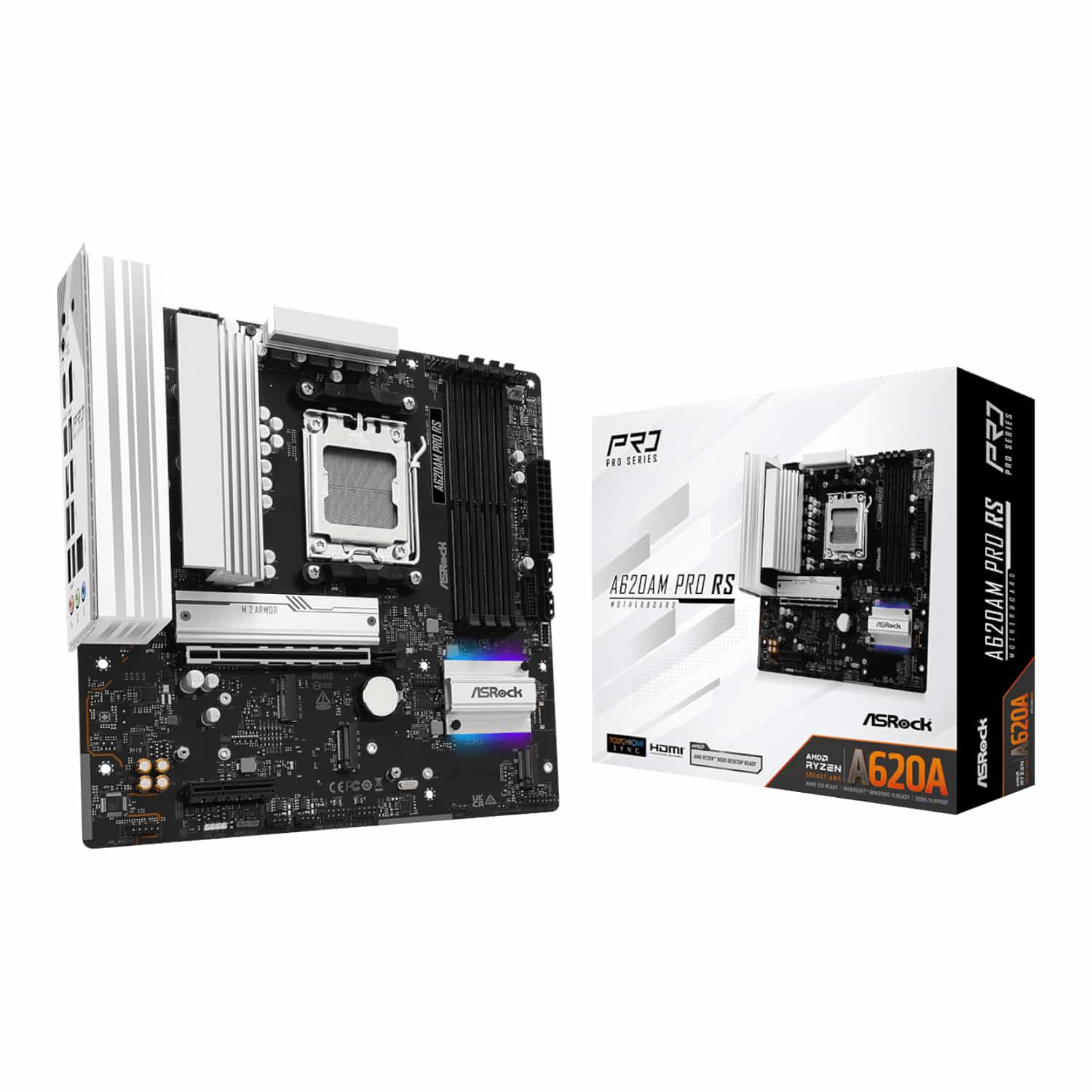

ASRock A620AM Pro RS AM5 M-ATX Motherboard

Reliable and stable performance

The ASRock A620AM Pro RS AM5 motherboard is built with high-quality components and advanced engineering to ensure reliable and stable performance. This motherboard is designed to withstand the demands of modern computing, providing a solid foundation for your system. With support for Microsoft Windows 10 and 11 64-bit operating systems, you can be confident in its compatibility and performance.

FEATURES:

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 6+2+1 Phase Power Design, Dr.MOS
• 4 x DDR5 DIMMs
• Supports Dual Channel, up to 8000+ (OC)
• 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x4, 1 x M.2 Key E for WiFi
• Graphics Output Options: 1 x HDMI, 1 x DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 2 x Hyper M.2 (PCIe Gen4x4)
• 1 x Ultra M.2 (PCIe Gen3x4)
• 2 x SATA3
• 2 x USB 3.2 Gen1 Type-C (1 x Rear, 1 x Front)
• 5 x USB 3.2 Gen1 (3 x Rear, 2 x Front)
• 8 x USB 2.0 (4 x Rear, 4 x Front)
• Realtek 2.5G LAN
• Supports BIOS Flashback

SPECIFICATIONS:

• CPU & Chipset
  • Socket: AMD AM5
  • Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • Chipset: AMD A620A
• Bios
  • 256Mb AMI UEFI Legal BIOS with GUI support
• Memory
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
  • Max. capacity of system memory: 256GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• Graphics Output
  • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
• Expansion Slots
• CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
• Chipset:
  • 1 x PCIe 3.0 x16 Slot (PCIE2), supports x2 mode*
  • 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
  • * Supports NVMe SSD as boot disks
• Audio
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
• LAN
  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Dragon 2.5G LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control
• Storage
• CPU:
  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• Chipset:
  • 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
  • 2 x SATA3 6.0 Gb/s Connectors
  • * Supports NVMe SSD as boot disks
• RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
  • * Requires additional M.2 NVMe expansion cards to support RAID 10
• USB
  • CPU:
  • 1 x USB 3.2 Gen1 Type-C (Rear)
  • 2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1, USB32_2)) Chipset:
  • 1 x USB 3.2 Gen1 Type-C (Front)
  • 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 2 Front)
  • 8 x USB 2.0 (4 Rear, 4 Front)
  • * All USB ports support ESD Protection
• Connector
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header*
  • 3 x Addressable LED Headers**
  • 1 x CPU Fan Connector (4-pin)***
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  • 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header
  • * Supports in total up to 12V/3A, 36W LED Strip
  • ** Support in total up to 5V/3A, 15W LED Strip
  • *** CPU_FAN1 supports the fan power up to 1A (12W).
  • **** CPU_FAN2/WP supports the fan power up to 2A (24W).
  • ***** CHA_FAN1~3/WP support the fan power up to 2A (24W).
  • CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O
  • 2 x Antenna Mounting Points
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 3 x USB 3.2 Gen1 Type-A Ports
  • 1 x USB 3.2 Gen1 Type-C Port
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Software
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Dragon 2.5G LAN Software
  • ASRock Polychrome SYNC*
  • *These utilities can be downloaded from ASRock Live Update & APP Shop.
• UEFI
  • ASRock Full HD UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
• Form Factor
  • Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• OS Compatibility: Microsoft Windows® 10 64-bit / 11 64-bit
• Certifications:
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)

WHAT'S IN THE BOX:

• ASRock A620AM Pro RS AM5 M-ATX Motherboard x1
• SATA Cables x2
• Screws for M.2 Sockets x4
• Standoff for M.2 Socket x1
