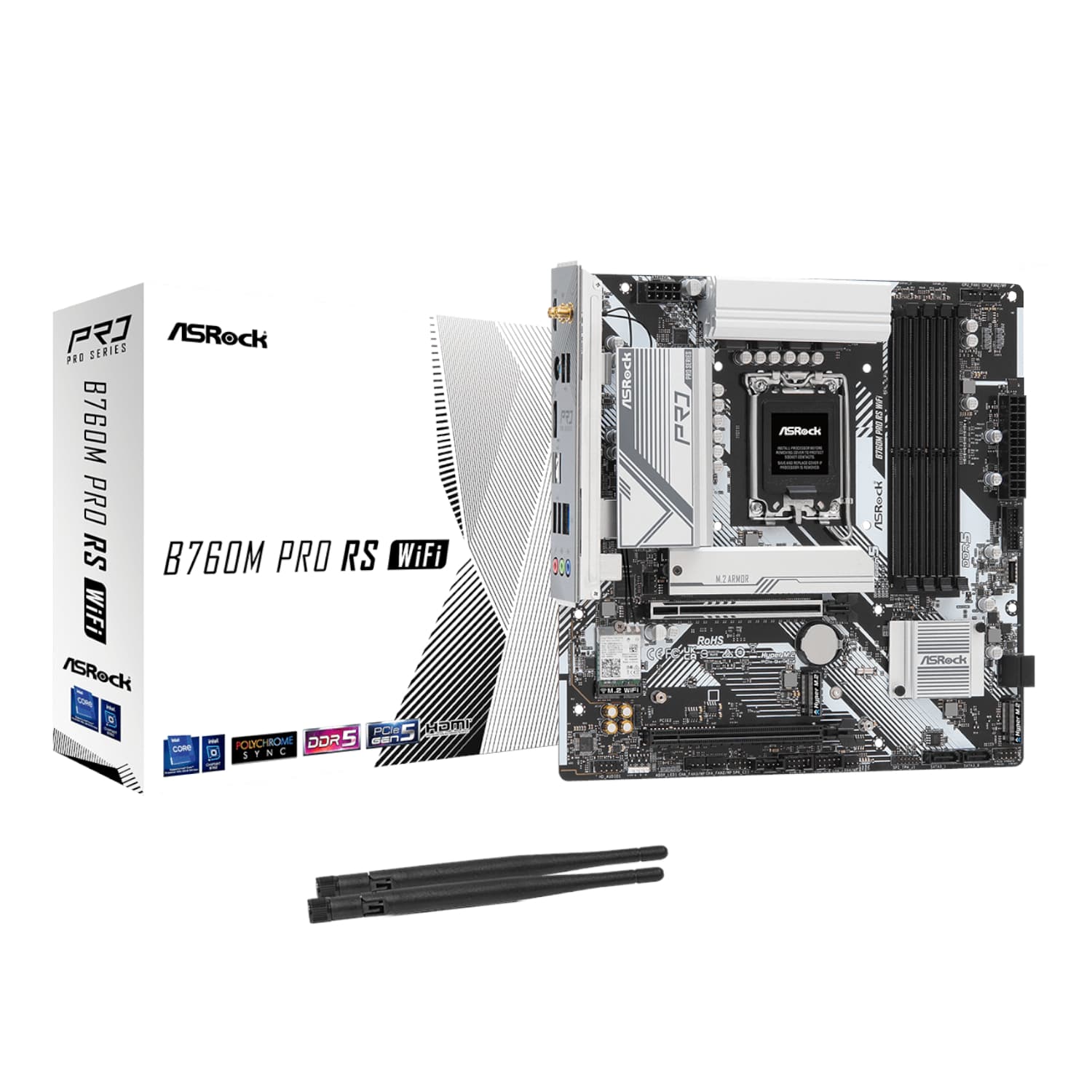

ASRock B760M Pro RS WiFi Intel LGA 1700 MATX Gaming Motherboard

Experience the thrill of online gaming without compromise thanks to integrated Wi-Fi 6E. This cutting-edge wireless technology offers significantly faster speeds and lower latency compared to previous standards, providing a stable and responsive connection for all your online activities. Furthermore, the inclusion of PCIe 5.0 support for graphics cards ensures that your build is ready for the next generation of GPUs, offering unparalleled bandwidth for faster loading and smoother frame rates. Essential ports, including HDMI and DisplayPort, facilitate multiple display setups, enhancing your gaming and productivity experience. The ASRock B760M Pro RS WiFi is a premier choice among LGA 1700 motherboards.

Durability and thoughtful design

Understanding the need for a system that lasts, ASRock has incorporated features designed for longevity. The Micro-ATX form factor offers versatility in case selection, allowing for more compact yet powerful gaming rigs. High-quality components and a well-thought-out layout ensure efficient heat dissipation and ease of installation. This motherboard is built not just for today's performance, but for the challenges of tomorrow's gaming landscape. Choosing ASRock means choosing durability for your LGA 1700 build.

FEATURES:

• Experience lightning-fast wireless speeds and reduced latency with integrated Wi-Fi 6E for a competitive edge.
• Future-proof your build by leveraging PCIe 5.0 support, ensuring compatibility with next-generation graphics cards.
• Run demanding applications and multitask with ease, thanks to support for up to 256GB of DDR5 memory.
• Enjoy crisp visuals for gaming and productivity with onboard HDMI and DisplayPort outputs.
• Benefit from a stable and reliable power supply for your CPU, crucial for sustained performance and overclocking.
• Effortlessly connect your core components with the versatile Micro-ATX form factor, balancing size and functionality.

SPECIFICATIONS:

• CPU:
  • Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • Supports Intel® Hybrid Technology
  • Supports Intel® Turbo Boost Max 3.0 Technology
  • Supports Intel® Thermal Velocity Boost (TVB)
  • Supports Intel® Adaptive Boost Technology (ABT)
• Chipset:
  • Intel® B760
• Memory:
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
  • Max. capacity of system memory: 256GB
  • Supports Intel® Extreme Memory Profile (XMP) 3.0
  • *1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
  • 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
  • 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
  • 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
• BIOS:
  • 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics:
  • Intel® Xe Graphics Architecture (Gen 12)
  • 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
  • * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio:
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
• LAN:
  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Dragon 2.5G LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control
• Wireless LAN:
  • 802.11axe Wi-Fi 6E Module
  • Supports IEEE 802.11a/b/g/n/ac/ax/axe
  • Supports Dual-Band 2x2 160MHz with extended 6GHz band* support
  • 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
  • Supports Bluetooth 5.3 + High speed class II
  • Supports MU-MIMO
  • Supports Killer LAN Software
  • *The 6GHz band of Wi-Fi 6E module is supported by Microsoft® Windows® 11 only.
  • The availability of the 6GHz band will depend on the different regulation status of each country and region.
  • It will be activated (for supported countries) through Windows® Update and software updates once available.
  • A 6GHz compatible router is required for 6E functionality.
• Slots:
  • CPU:
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
  • Chipset:
  • 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
  • Supports AMD CrossFire™
  • * Supports NVMe SSD as boot disks
• Storage:
  • CPU:
  • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  • Chipset:
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  • 4 x SATA3 6.0 Gb/s Connectors
  • * Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
• RAID:
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB:
  • Chipset:
  • 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
  • 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
  • 6 x USB 2.0 (2 Rear, 4 Front)
  • * All USB ports support ESD Protection
• Connector:
  • 1 x SPI TPM Header
  • 1 x Chassis Intrusion and Speaker Header
  • 1 x RGB LED Header*
  • 3 x Addressable LED Headers**
  • 1 x CPU Fan Connector (4-pin)***
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
  • 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen1 Header
  • * Supports in total up to 12V/3A, 36W LED Strip
  • ** Support in total up to 5V/3A, 15W LED Strip
  • *** CPU_FAN1 supports the fan power up to 1A (12W).
  • **** CPU_FAN2/WP supports the fan power up to 2A (24W).
  • ***** CHA_FAN1~4/WP support the fan power up to 2A (24W).
  • CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.
• Rear Panel I/O:
  • 2 x Antenna Ports
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen1 Type-C Port
  • 3 x USB 3.2 Gen1 Type-A Ports
  • 2 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Form Factor:
  • Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• OS:
  • Microsoft® Windows® 10 64-bit / 11 64-bit
• Certifications:
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)

WHAT'S IN THE BOX:

• ASRock B760M Pro RS WiFi LGA1700 M-ATX Gaming Motherboard - Black/White x1
• SATA Data Cables x2
• ASRock WiFi 2.4/5/6 GHz Antennas x2
• Screws for M.2 Sockets x3
• Standoff for M.2 Socket x1
• User Manual x1
