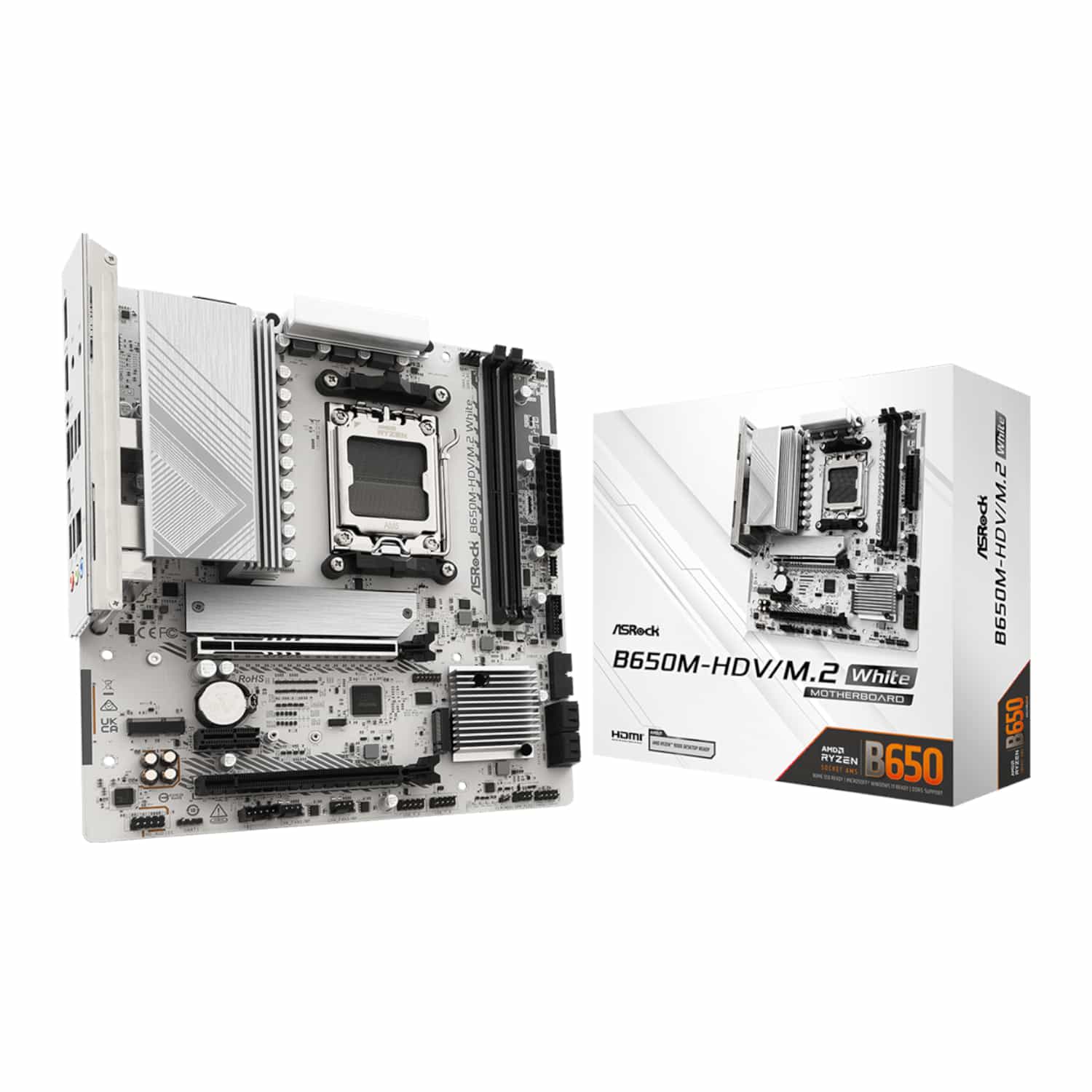

ASRock B650M-HDV/M.2 AM5 Micro-ATX Motherboard

• Colour: White
• CPU & Chipset
  • Socket: AMD AM5
  • Supported CPUs: Ryzen™ 9000, 8000 and 7000 Series Processors
  • Chipset: AMD B650
• Memory
  • Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)
  • Max. capacity of system memory: 128GB
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• Graphics Output
  • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
• Expansion Slots
• CPU:
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
  • 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
• Chipset:
  • 1 x PCIe 4.0 x1 Slot (PCIE2)
  • 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT PCIe Wi-Fi module
  • Supports AMD CrossFire™
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
• Storage
• CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• Chipset:
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
  • 4 x SATA3 6.0 Gb/s Connectors
• Networking
  • LAN: Realtek Dragon RTL8125BG 2.5G
• USB Ports
  • 1 x USB 3.2 Gen2 Type-C (Front)
  • 1 x USB 3.2 Gen1 Type-C (Rear)
  • 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
  • 8 x USB 2.0 (4 Rear, 4 Front)
• Audio
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
• Connector
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x CPU Fan Connector (4-pin)
  • 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 1 x 8 pin 12V Power Connector
  • 1 x Front Panel Audio Connector
  • 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen2 Header
• DIY Features
  • BIOS Flashback Button
  • ASRock Post Status Checker
  • ASRock Auto Driver Installer
  • Reinforced PCIe Steel Slot
  • Pre-Installed I/O Shield
• Rear I/O Ports
  • 2 x Antenna Mounting Points
  • 1 x HDMI Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen1 Type-C Port
  • 2 x USB 3.2 Gen1 Type-A Ports
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Software & UEFI
  • Software
  • ASRock Motherboard Utility (A-Tuning)
  • ASRock Dragon 2.5G LAN Software*
  • UEFI
  • ASRock Full HD UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
• Form Factor: Micro ATX Form Factor (24.4 cm x 22.6 cm) | 2oz Copper PCB
• OS Compatibility: Microsoft Windows® 10 64-bit / 11 64-bit

WHAT’S IN THE BOX:

• ASRock B650M-HDV/M.2 AM5 Micro-ATX Motherboard - White x1
• User Manual x1
• SATA Data Cables x2
• Screws for M.2 Sockets x3
