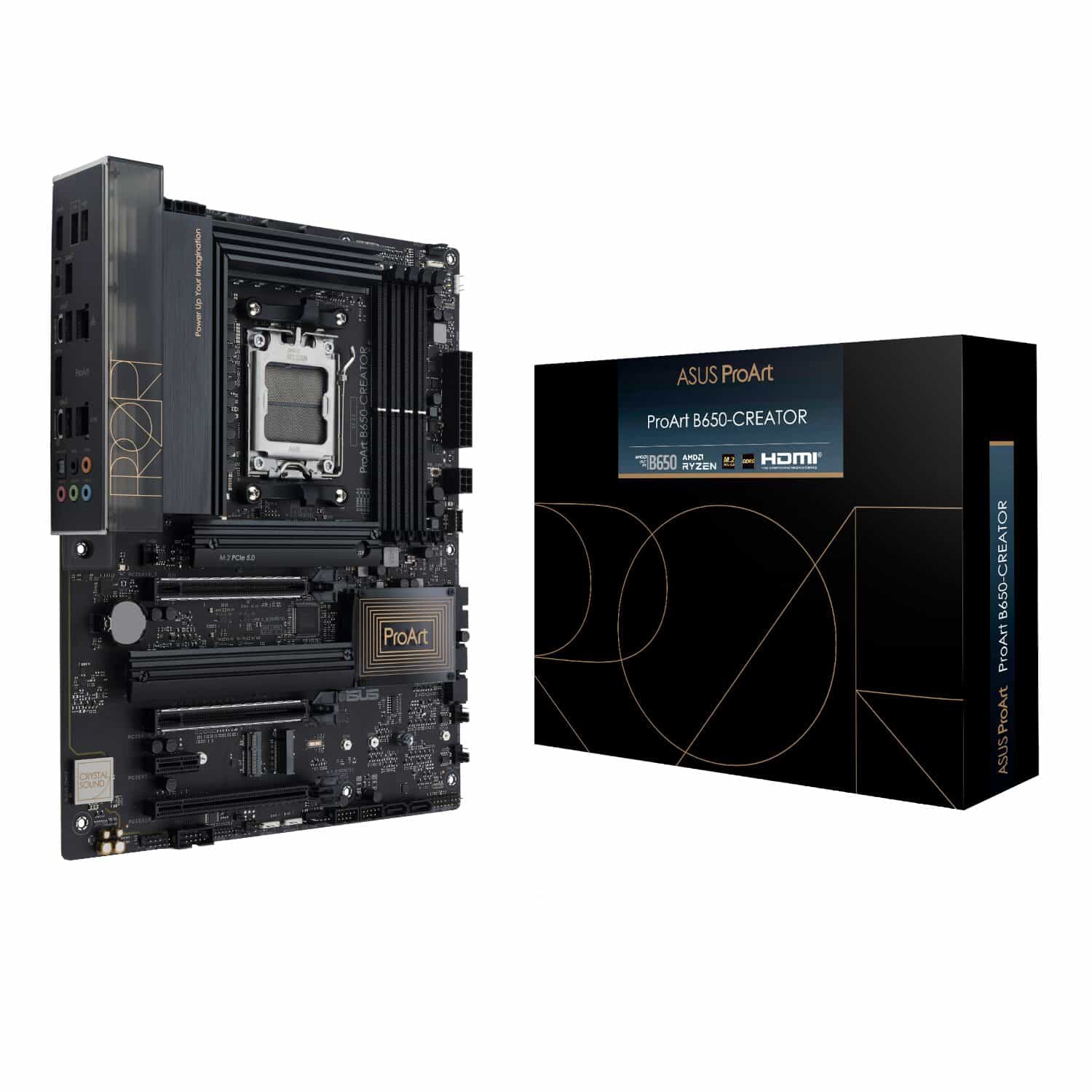

ASUS ProArt B650-Creator AMD AM5 ATX Motherboard

SPECIFICATIONS:

• CPU
  • Socket: AMD Socket AM5
  • Supported CPUs: AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors*
  • *Refer to www.asus.com for the full CPU support list.
• Chipset
  • Chipset: AMD B650
• Memory
  • DIMM Slots: 4 x DIMM
  • Max Memory Capacity: 128GB (DDR5) or 192GB (DDR5), depending on CPU
  • Memory Speed (OC): 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800
  • Memory Types: ECC & Non-ECC, Un-buffered Memory*
  • Dual Channel Architecture
  • AMD EXPO™ Support for Overclocking
  • OptiMem II Support
  • *Non-ECC, Un-buffered DDR5 supports On-Die ECC function
• Graphics
  • 1 x HDMI® port (supports 4K@60Hz, HDMI 2.1)
  • 1 x USB Type-C® port (supports DisplayPort 1.4, 8K@60Hz)
  • Graphics specifications vary by CPU type
• Expansion Slots
  • 2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes)
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)*
  • 1 x PCIe 4.0 x1 slot
  • *PCIEX16_3 shares bandwidth with M.2_3 slot
• Storage
  • M.2 Slots: 3 x M.2 slots (Key M)
  • M.2_1: PCIe 5.0 x4 mode
  • M.2_2: PCIe 4.0 x4/x2 mode (depending on CPU)
  • M.2_3: PCIe 4.0 x4 mode (shares bandwidth with PCIEX16_3)
  • SATA Ports: 4 x SATA 6Gb/s
  • RAID Support: AMD RAIDXpert2 for NVMe RAID 0/1/10 and SATA RAID 0/1/10
• Ethernet
  • 1 x Realtek 2.5Gb Ethernet
  • 1 x Realtek 1Gb Ethernet
  • ASUS LANGuard for enhanced network protection
• Wireless & Bluetooth
  • M.2 Slot for Wi-Fi Module (sold separately)
  • PCIe Key E for Wi-Fi module support
• USB Ports:
• Rear USB Ports (Total 7):
  • o 1 x USB 3.2 Gen 2 Type-C® (shared with DisplayPort graphic output)
  • o 4 x USB 3.2 Gen 2 Type-A
  • o 2 x USB 2.0 Type-A
• Front USB Ports (Total 7):
  • o 1 x USB 3.2 Gen 2x2 (supports USB Type-C® with up to 60W PD/QC4+)
  • o 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports)
  • o 2 x USB 2.0 headers (supports 4 additional USB 2.0 ports)
• Audio
  • Realtek 7.1 Surround Sound High Definition Audio CODEC
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Up to 24-bit/192 kHz playback
• Audio Features:
  • Power pre-regulator reduces input noise for consistent performance
  • Rear optical S/PDIF out port
  • Premium audio capacitors and dedicated PCB layers
  • Audio cover and unique de-pop circuit
• Back Panel I/O Ports
  • 1 x USB 3.2 Gen 2 Type-C® (shared with DisplayPort graphic output)
  • 4 x USB 3.2 Gen 2 Type-A
  • 2 x USB 2.0 Type-A
  • 1 x DisplayPort (Input only)
  • 1 x HDMI® port
  • 1 x Realtek 2.5Gb Ethernet
  • 1 x Realtek 1Gb Ethernet
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
• Internal I/O Connectors
• Fan and Cooling:
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
• Power:
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • 1 x 6-pin PCIe Power connector
• Storage:
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB:
  • 1 x USB 3.2 Gen 2x2 connector
  • 1 x USB 3.2 Gen 1 header (supports 2 USB 3.2 Gen 1 ports)
  • 2 x USB 2.0 headers (supports 4 USB 2.0 ports)
• Miscellaneous:
  • 3 x Addressable Gen 2 headers
  • 1 x Aura RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x M.2 slot (Key E)
  • 1 x 20-5 pin System Panel header
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt™ (USB4®) header
• Special Features
• ASUS 5X PROTECTION III:
  • DIGI+ VRM (Digital Power Design with DrMOS)
  • Enhanced DRAM Overcurrent Protection
  • ESD Guards
  • LANGuard
  • Overvoltage Protection
  • Safeslot
  • Stainless-Steel Back I/O
• ASUS Q-Design:
  • M.2 Q-Latch
  • Q-Connector
  • Q-DIMM
  • Q-LED (CPU, DRAM, VGA, Boot Device indicators)
  • Q-Slot
• ASUS Thermal Solution:
  • M.2 heatsinks
  • VRM heatsink design
• ASUS EZ DIY:
  • BIOS FlashBack™ button and LED
  • ProCool, Pre-mounted I/O shield
  • SafeSlot and SafeDIMM
• AURA Sync:
  • Aura RGB header and Addressable Gen 2 headers
• Bespoke Motherboard Design & Business-Focused Features:
• 24/7 Reliability
• Overcurrent Protection
• Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support:
  • Charging Support: up to 60W
  • Output: 5/9/15/20V max. 3A
  • Compatible with QC 4.0/3.0/2.0, PD3.0, and PPS
• Software Features
• ASUS Exclusive Software:
  • Armoury Crate, Aura Creator, Fan Xpert 4
  • AI Suite 3, TurboV EVO, DIGI+ VRM, PC Cleaner
  • ASUS CPU-Z, IT Management (ACCE), CreationFirst
  • Norton Anti-Virus software (Free Trial)
  • ProArt Creator Hub, WinRAR
• UEFI BIOS:
  • ASUS EZ DIY features (CrashFree BIOS 3, EZ Flash 3, UEFI EZ Mode)
• Manageability
  • WOL by PME, PXE
  • Supported OS: Windows® 11 64-bit, Windows® 10 64-bit
• Form Factor
  • ATX Form Factor
  • Dimensions: 30.5 cm x 24.4 cm

WHAT'S IN THE BOX:

• ASUS ProArt B650-Creator AMD AM5 ATX Motherboard x1
• DisplayPort cable x1
• SATA 6Gb/s cables x2
• Q-connector x1
• Rubber Packages for M.2 x1
• Screw packages for M.2 SSD x1
• Screw package for M.2 Key E x1
• ProArt ruler x1
• ACC Express Activation Key Card x1
• User guide x1
