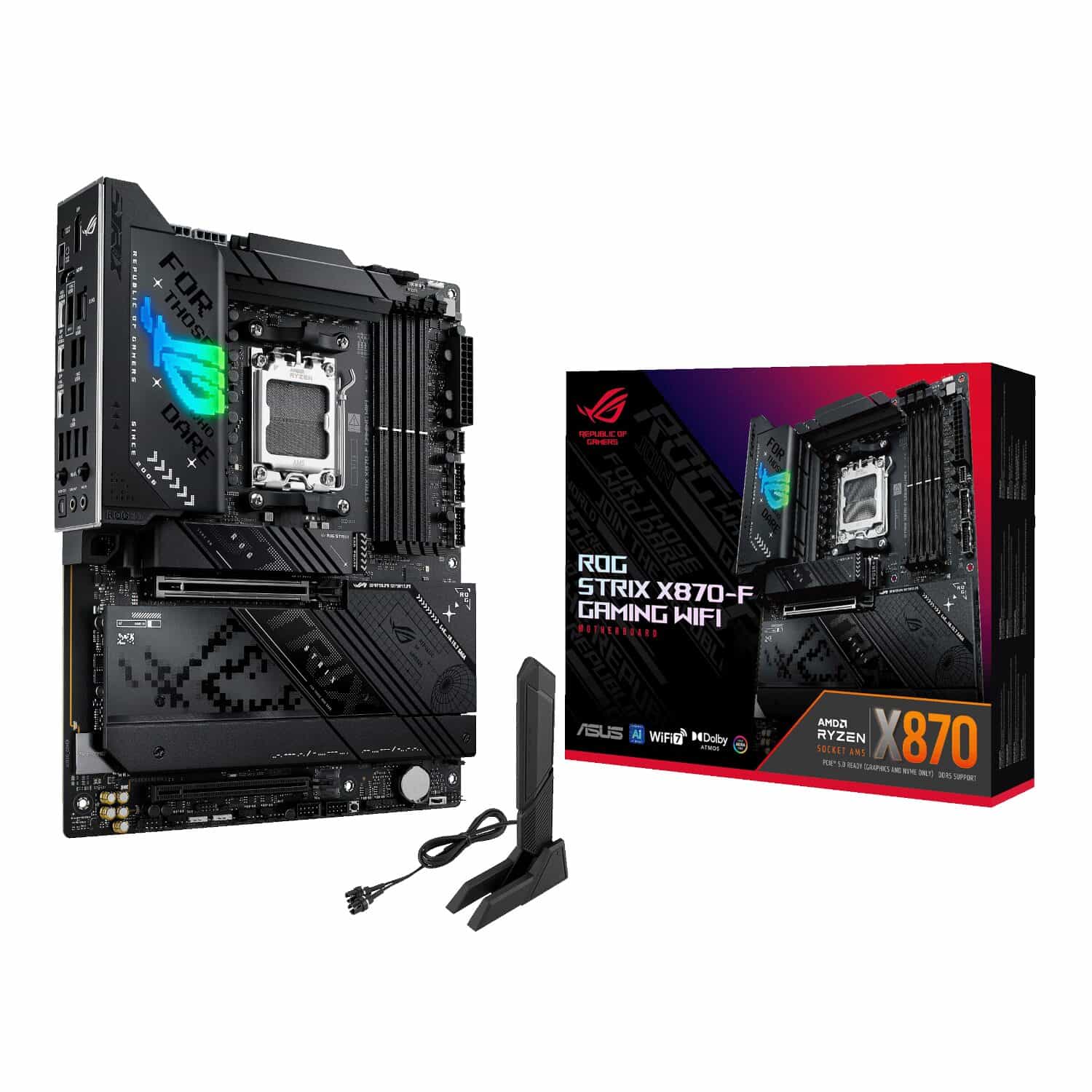

Asus ROG Strix X870-F Gaming WiFi Motherboard - ATX AMD AM5

SPECIFICATIONS:

• CPU
• CPU Support: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
• Chipset: AMD X870
• Memory
  • 4 x DIMM slots, up to 256GB total
  • Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory
  • Dual-Channel Memory Architecture
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)
• Graphics
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
• Expansion Slots
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
    • 1 x PCIe 5.0 x16 slot (supports x16 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
    • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
  • AMD X870 Chipset
    • 1 x PCIe 4.0 x16 slot (supports x4 mode)
• Storage
  • Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
    • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
    • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
    • M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supported)
  • AMD X870 Chipset
    • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    • M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    • 2 x SATA 6Gb/s ports
• Ethernet: 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard
• Wireless & Bluetooth
  • 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band
  • Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps  transfer rate.
  • Bluetooth® v5.4
• USB
  • Rear USB (Total 12 ports)
    • 2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)
    • 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)
    • 4 x USB 5Gbps ports (4 x Type-A)
  • Front USB (Total 9 ports)
    • 1 x USB 20Gbps connector (supports USB Type-C®)
    • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Audio
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
    • Impedance sense for front and rear headphone outputs
    • Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    • High-quality 120 dB SNR stereo playback output and 110 dB SNR recording input
    • Supports up to 32-bit/384 kHz playback on front panel"
  • Audio Features
    • SupremeFX Shielding Technology
    • Savitech SV3H712 AMP
    • Rear optical S/PDIF out port
    • Premium audio capacitors
    • Audio cover
• Back Panel I/O Ports
  • 2 x USB4® (40Gbps) ports (2 x USB Type-C® with DP Alt mode)
  • 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™ port
  • 1 x Wi-Fi module
  • 1 x Intel® 2.5Gb Ethernet
  • 2 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
• Internal I/O Connectors
  • Fan and Cooling Related
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin CPU OPT Fan header
    • 1 x 4-pin AIO Pump header
    • 5 x 4-pin Chassis Fan headers
  • Power Related
    • 1 x 24-pin Main Power connector
    • 2 x 8-pin +12V CPU Power connectors
  • Storage Related
    • 4 x M.2 slots (Key M)
    • 2 x SATA 6Gb/s ports
  • USB
    • 1 x USB 20Gbps connector (supports USB Type-C®)
    • 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
    • 3 x Addressable Gen 2 headers
    • 1 x Alteration PCIe mode switch
    • 1 x Chassis Intrusion header
    • 1 x CPU Over-voltage jumper
    • 1 x Front Panel Audio header (F_AUDIO)
    • 1 x Start button
    • 1 x 10-1 pin System Panel header
    • 1 x Thermal Sensor header
• Special Features
  • Extreme Engine Digi+
    • 5K Black metallic capacitors
  • ASUS Q-Design
    • M.2 Q-Latch
    • M.2 Q-Release
    • M.2 Q-Slide
    • PCIe Slot Q-Release Slim (with PCIe SafeSlot)
    • Q-Antenna
    • Q-Dashboard
    • Q-DIMM
    • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    • Q-Slot
  • ASUS Thermal Solution
    • M.2 heatsink backplate
    • M.2 heatsink
  • ASUS EZ DIY
    • BIOS FlashBack™ button
    • BIOS FlashBack™ LED
    • Clear CMOS button
    • ProCool II
    • Pre-mounted I/O shield
    • SafeSlot
    • SafeDIMM
  • Aura Sync
    • Addressable Gen 2 headers
• Software Features
  • ROG Exclusive Software
    • ROG CPU-Z
    • Dolby Atmos
  • ASUS Exclusive Software
  • Armoury Crate
    • AIDA64 Extreme (60-day free trial)
    • Aura Creator
    • Aura Sync
    • Fan Xpert 4 (with AI Cooling II)
    • GameFirst
    • HWiNFO
    • Power Saving
  • ASUS Driver Hub
  • ASUS GlideX
  • USB Wattage Watcher
  • TurboV Core
  • Adobe Creative Cloud (Free Trial)
  • Norton 360 for Gamers (60 Days Free Trial)
  • WinRAR (40 Days Free Trial)
  • UEFI BIOS
  • AI Overclocking Guide
  • ASUS EZ DIY
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash 3
    • ASUS UEFI BIOS EZ Mode
    • ASUS MyHotkey
  • Dynamic OC Switcher
  • FlexKey
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PM, PXE
• Operating System: Windows 11
• Form Factor: ATX Form Factor
  • Dimensions: 30.5 x 24.4 cm

WHAT'S IN THE BOX:

• Asus ROG Strix X870-F Gaming WiFi Motherboard - ATX AMD AM5 x1
• SATA 6Gb/s cables x2
• Thermal pad for M.2 22110 x1
• ASUS WiFi Q-Antenna x1
• Cable ties package x1
• M.2 Q-Latch package x1
• M.2 Q-Slide package x1
• ROG key chain x1
• ROG Strix stickers x1
• M.2 rubber packages x4
• Quick start guide x1
