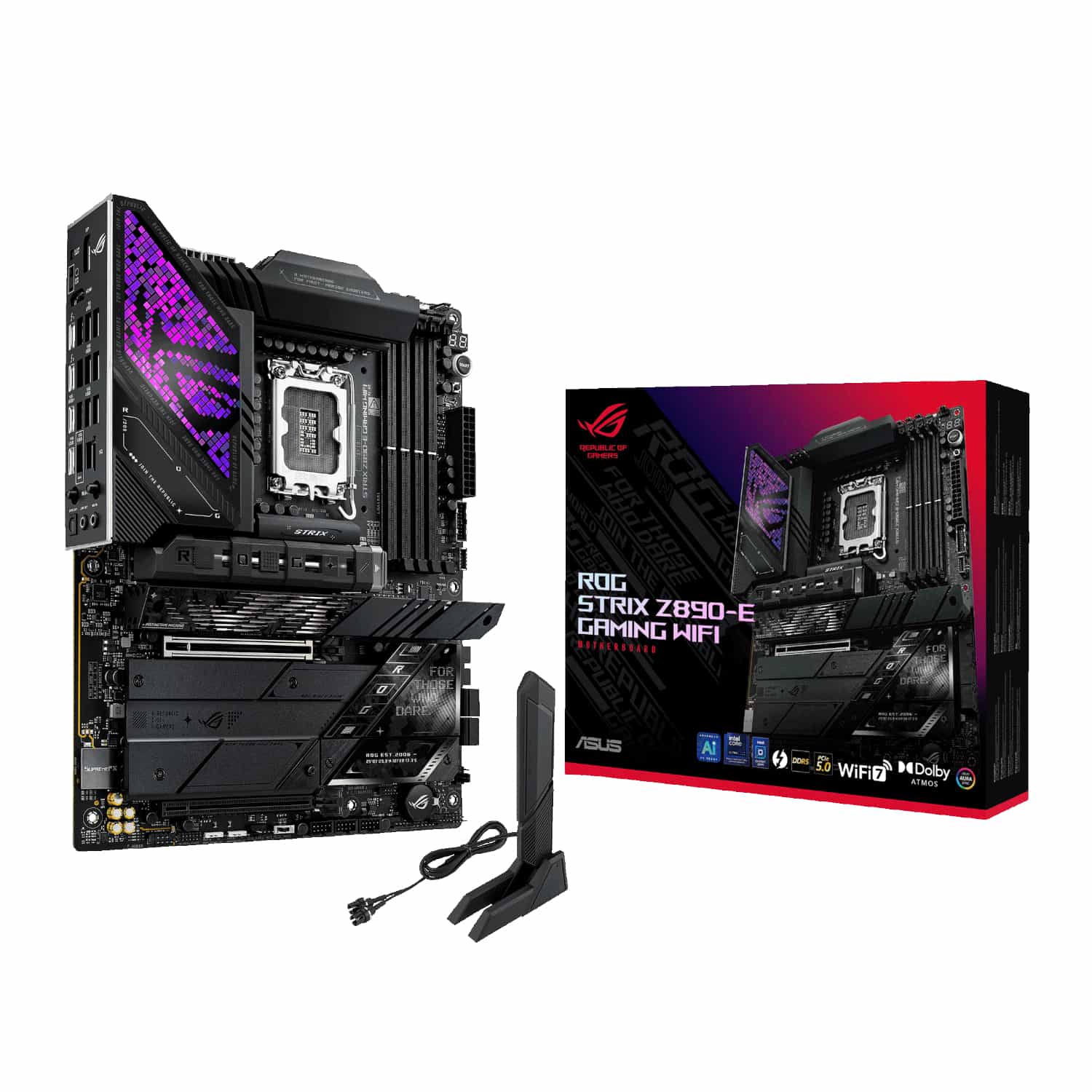

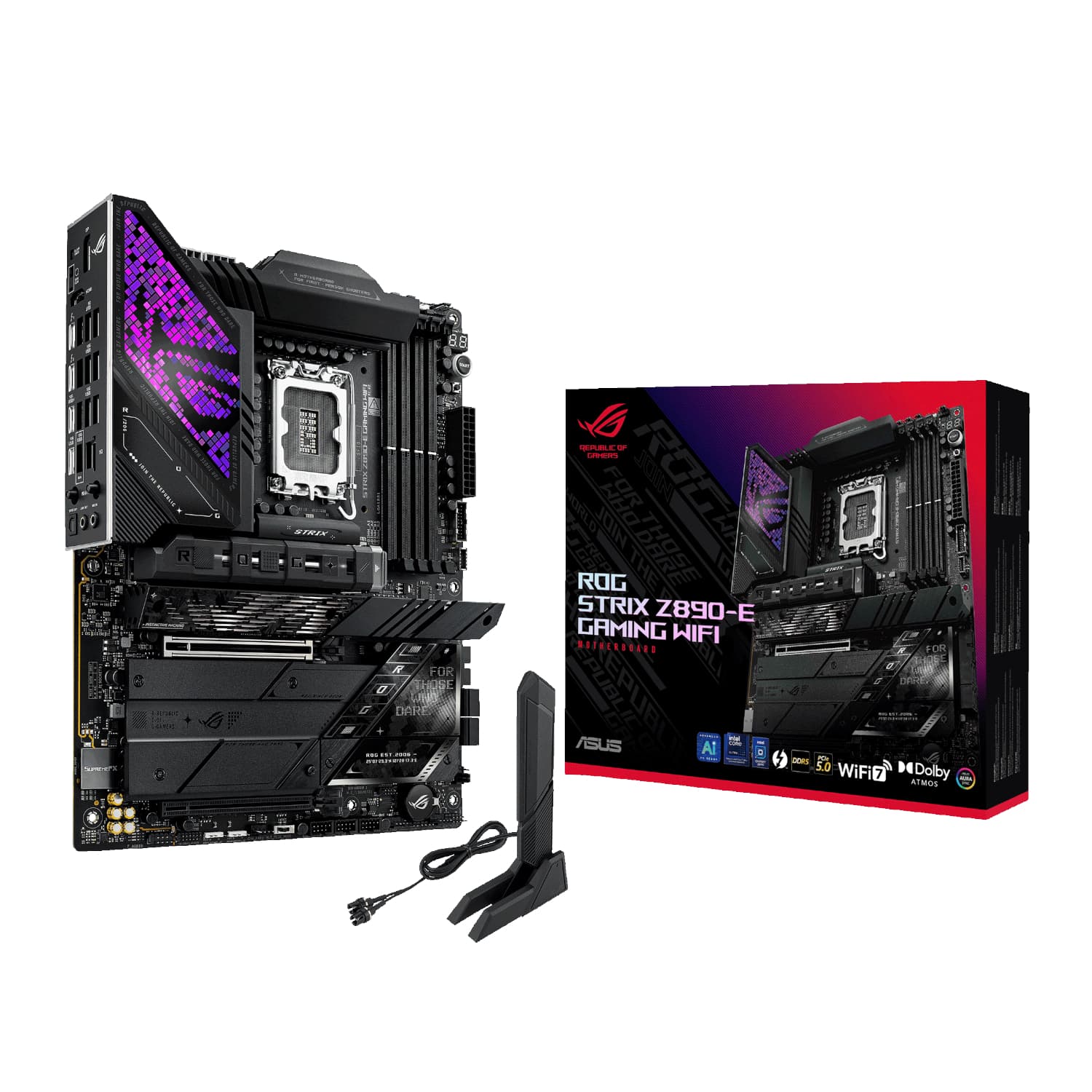

Asus ROG Strix Z890-E Gaming WIFI Intel LGA1851 ATX Gaming Motherboard

Intelligent control for peak performance

Asus's renowned AI technologies are integrated to simplify complex tuning. AI Overclocking intelligently optimises your CPU performance based on system loads and temperatures, providing a personalised boost without manual intervention. AI Cooling proactively manages fan speeds, ensuring optimal thermal performance and quiet operation. This intelligent automation allows you to focus on your game, confident that your hardware is performing at its absolute best, making it an ideal choice for both seasoned builders and those new to the enthusiast PC space seeking quality motherboards.

FEATURES:

• Dominate the competition with robust power delivery designed for Intel LGA1700 processors, ensuring unthrottled performance.
• Experience blazing-fast data transfer and next-generation gaming with PCIe 5.0 support for graphics cards and NVMe SSDs.
• Achieve seamless online gameplay and rapid downloads with the integrated Wi-Fi 7 connectivity.
• Maintain optimal system temperatures and acoustics with intelligent AI Cooling technology.
• Unlock peak CPU performance effortlessly with AI Overclocking, tailored to your system's capabilities.
• Enjoy enhanced audio immersion with high-fidelity onboard audio solutions.
• Streamline your build process with user-friendly features and comprehensive BIOS options.

SPECIFICATIONS:

• CPU
  • Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to https://www.asus.com/support/download-center/ for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® Z890 Chipset
• Memory
  • 4 x DIMM slots, max. 256GB, DDR5
  • Support up to 9200+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP) memory module
  • Supports DIMM Flex
  • NitroPath DRAM Technology
  • DIMM Fit
  • ASUS Enhanced Memory Profile III (AEMP III)
• Graphics
  • 1 x DisplayPort**
  • 1 x HDMI® port***
  • 2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs****
• Expansion Slots
  • Intel® Core™ Ultra Processors(Series 2)*
  • 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
  • Intel® Z890 Chipset
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
  • - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• Storage
  • Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports*
  • Intel® Core™ Ultra Processors(Series 2)*
  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
  • Intel® Z890 Chipset
  • M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
  • ** M.2_3 & M.2_4 slots share bandwidth with PCIEX16(G5). When M.2_3 & M.2_4 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
• Ethernet
  • 1 x Realtek 5Gb Ethernet
  • ASUS LANGuard
• Wireless & Bluetooth
  • Wi-Fi 7*
  • 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band**
  • Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
  • Bluetooth® v5.4***
  • *Wi-Fi features may vary depending on the operating system
  • For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
  • For Windows 10, only Wi-Fi 6 is supported.
  • ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
  • *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB
• Rear USB (Total 14 ports)
  • 2 x Thunderbolt™ 4 (2 x USB Type-C®)
  • 9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**
  • 3 x USB 5Gbps ports (3 x Type-A)
• Front USB (Total 11 ports)
  • 1 x USB 20Gbps connector (supports USB Type-C®)
  • 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
  • 3 x USB 2.0 headers support additional 6 USB 2.0 ports
  • * USB Type-C® power delivery output: 5V/3A
  • ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.
• Audio
  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
  • - Impedance sense for front and rear headphone outputs
  • - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
  • - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
  • - Supports up to 32-Bit/384 kHz playback on front panel
• Audio Features
  • - Audio Shielding
  • - Savitech SV3H712 AMP
  • - Gold-plated audio jacks
  • - Rear optical S/PDIF out port
  • - Premium audio capacitors
  • - Audio cover
• Back Panel I/O Ports
  • 2 x Thunderbolt™ 4 (2 x USB Type-C®)
  • 9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)
  • 3 x USB 5Gbps ports (3 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI® port
  • 1 x Wi-Fi Module
  • 1 x Realtek 5Gb Ethernet
  • 2 x Gold-plated audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack™ button
  • 1 x Clear CMOS button
  • Internal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 5 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connectors
  • Storage related
  • 7 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 20Gbps connector (supports USB Type-C®)
  • 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports
  • 3 x USB 2.0 headers support additional 6 USB 2.0 ports
• Miscellaneous
  • 3 x Addressable Gen2 headers
  • 1 x Chassis Intrusion header
  • 1 x CPU Over Voltage jumper
  • 1 x FlexKey button
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x Start button
  • 1 x 10-1 pin System Panel header
  • 1 x Alteration PCIe mode switch
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt™ (USB4®) header
• BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Operating System
  • Windows® 11 (22H2 & later)
• Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

WHAT'S IN THE BOX:

• Asus ROG Strix Z890-E Gaming WIFI Intel LGA1851 ATX Gaming Motherboard - Black x1
• SATA 6Gb/s cables x2
• Thermal pad for M.2 22110 x1
• ASUS Wi-Fi Q-Antenna x1
• Cable ties pack x1
• M.2 Q-Latch package x1
• M.2 Q-Slides x2
• ROG key chain x1
• ROG Strix stickers x1
• M.2 Rubbers x7
• Quick start guide x1

Why Asus?

Asus ROG is synonymous with elite gaming hardware, engineered for performance and reliability. For South African gamers, ROG provides the edge needed to compete at the highest level, backed by innovation and a commitment to quality that gamers trust. This commitment is evident in every Asus gaming motherboard, especially within the esteemed Z890 motherboard lineup.
