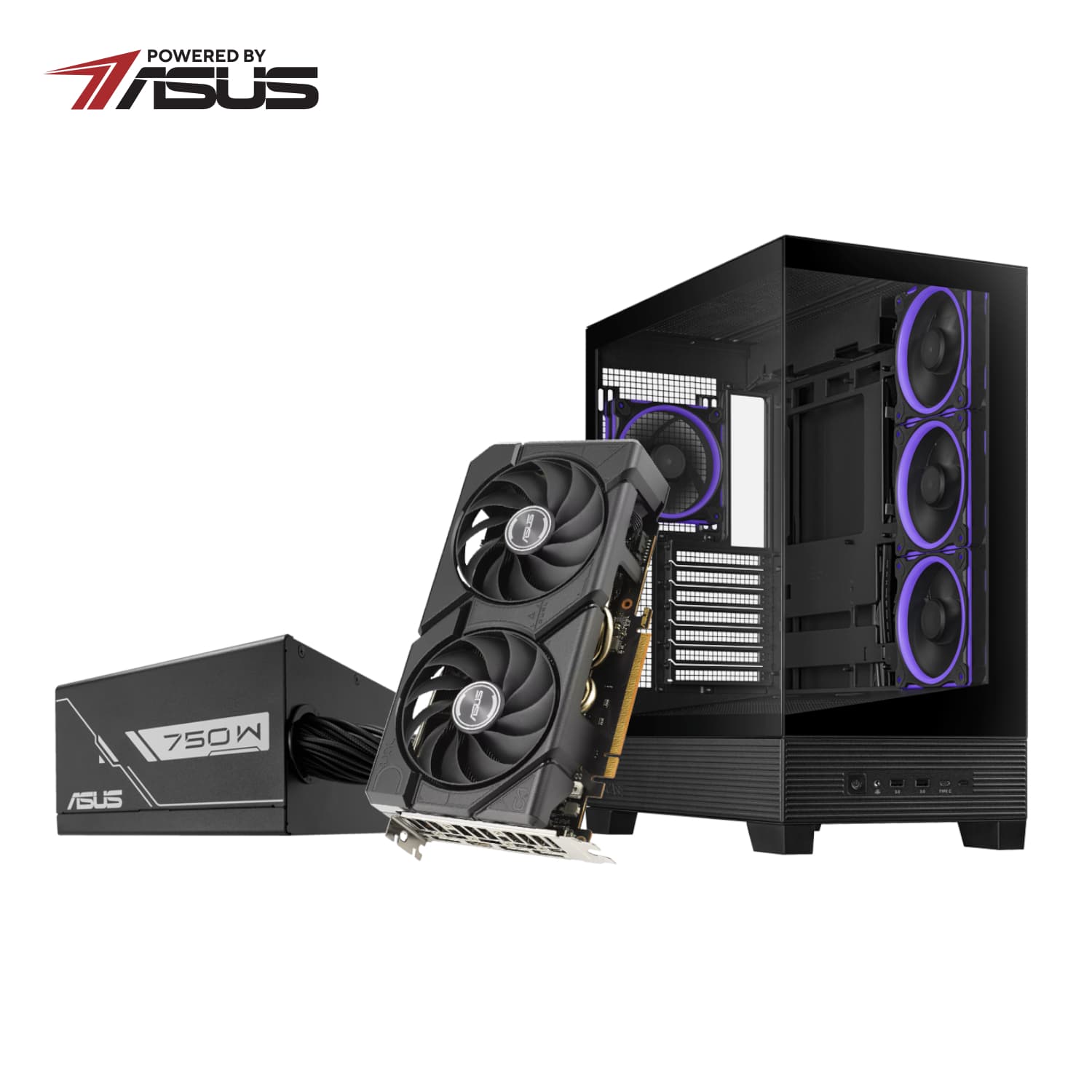

Asus UWM 2 Gaming Chassis/Graphics Card/Power Supply Combo (A31 PLUS | RX 7600 | PRIME 750W)

The Asus PRIME 750W 80 PLUS Bronze ATX Power Supply delivers stable, efficient power for modern PCs, making it an ideal choice for gaming rigs, productivity workstations, and everyday builds. Designed with high-quality internal components and engineered for dependable performance, this PSU achieves 80 PLUS Bronze certification, ensuring improved energy efficiency and reduced heat generation during operation. Lower internal temperatures allow the power supply to operate with a quieter acoustic profile while maintaining consistent voltage delivery, helping to protect sensitive components and maintain system stability. Whether you are assembling a new system or upgrading an existing one, the Asus Prime series provides reliable performance that meets the demands of modern hardware.

FEATURES:

• Compatible with ATX, Micro-ATX, Mini-ITX, and BTF motherboards.
• Dual 4 mm tempered glass panels on the front and left side.
• OC Mode: up to 2715 MHz (Boost Clock)/ up to 2300 MHz (Game Clock)
• Axial-tech Fan design features a smaller fan hub to increase airflow through the cooling array
• 80 PLUS Bronze efficiency to deliver reliable and efficient power while reducing heat output and power consumption.
• Dual Ball Bearing Fan – Rated for up to 80,000 hours of operation, providing long-lasting cooling performance and durability.

SPECIFICATIONS:

• Asus A31 PLUS Mid Tower ATX Chassis – Black
• Case Size: Mid Tower
• Motherboard Support:
  • BTF motherboard compatible
  • Mini-ITX
  • Micro-ATX
  • ATX
• Drive Bays: 2 x 2.5″/3.5″ Combo Bay
• Expansion Slots: 7
• Front I/O Port:
  • 1 x USB 3.2 Gen 2×2 Type C
  • 2 x USB 3.2 Gen1
  • 1 x headphone / Microphone
• Tempered Glass:
  • Left Side
  • Front Side
• Radiator Support (Top):
  • 360 mm
  • 280 mm
  • 240 mm
  • 140 mm
  • 120 mm
• Radiator Support (Rear): 120 mm
• Cooling Support (Top):
  • 2 x 140 mm
  • 3 x 120 mm
• Cooling Support (Rear):
  • 1 x 140 mm
  • 1 x 120 mm
• Pre-installed Fans (Rear)
  • ARGB
  • 1 x 120 mm
• Pre-Installed Fan (Side)
  • ARGB
  • 3 x 120 mm
• Maximum CPU Cooler Height: 165 mm
• Maximum GPU Length: 380 mm
• Maximum PSU Length: 200 mm
• Removable Dust Filters:
  • Bottom
  • Top
• Maximum Cable Management Space: 34 mm
• BTF motherboard compatible: Yes
• Dimensions: 23.8 x 51.1 x 43.5 cm
• Weight: 9100 g
• Asus Dual Radeon RX 7600 EVO OC Edition 8GB GDDR6 Graphics Card
• Graphic Engine: AMD Radeon™ RX 7600
• Bus Standard: PCI Express 4.0
• OpenGL: OpenGL®4.6
• Video Memory: 8GB GDDR6
• Engine Clock:
  • OC mode: up to 2715 MHz (Boost Clock)/up to 2300 MHz (Game Clock)
  • Default mode: up to 2695 MHz (Boost Clock)/up to 2280 MHz (Game Clock)
• Stream Processors: 2048
• Memory Speed: 18Gbps
• Memory Interface: 128-bit
• Resolution: Digital Max Resolution 7680 x 4320
• Interface:
  • Yes x 1 (Native HDMI 2.1)
  • Yes x 3 (Native DisplayPort 1.4a)
  • HDCP Support Yes (2.3)
• Maximum Display Support: 4
• NVlink/ Crossfire Support: No
• Recommended PSU: 550W
• Power Connectors: 1 x 8-pin
• Slot: 2.5 Slot
• Product Dimensions: 22.9 x 12.3 x 4.9 cm
• Asus PRIME 750W 80 PLUS Bronze ATX Non-modular Power Supply
• Total Output: 750W
• PFC Type: Active PFC
• ATX Standard: NA
• Efficiency: 80Plus Bronze
• MTBF: >120,000 hrs @ 25°C
• Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials: ROHS
• AC Input Range: 100-240Vac
• DC Output Voltage: +3.3V/+5V/+12V/-12V/+5Vsb
• Maximum Load: 20A/20A/62.5A/0.3A/2.5A
• Combined Load: 120W/120W/750W/3.6W/12.5W
• Cybenetics Noise Level Certification: NA
• 0dB Technology: No
• Cable Connectors:
  • MB 24/20-pin x 1
  • CPU 4+4-pin x 2
  • PCI-E 8-pin x 3
  • SATA x 6
  • PERIPHERAL x 3
• Product Dimensions: 15 x 15 x 8.6 cm
• Product Weight: 2200g

WHAT'S IN THE BOX:

• Asus A31 PLUS Mid Tower ATX Chassis – Black x1
• Asus Dual Radeon RX 7600 EVO OC Edition 8GB GDDR6 Graphics Card x1
• Asus PRIME 750W 80 PLUS Bronze ATX Non-modular Power Supply – Black x1
