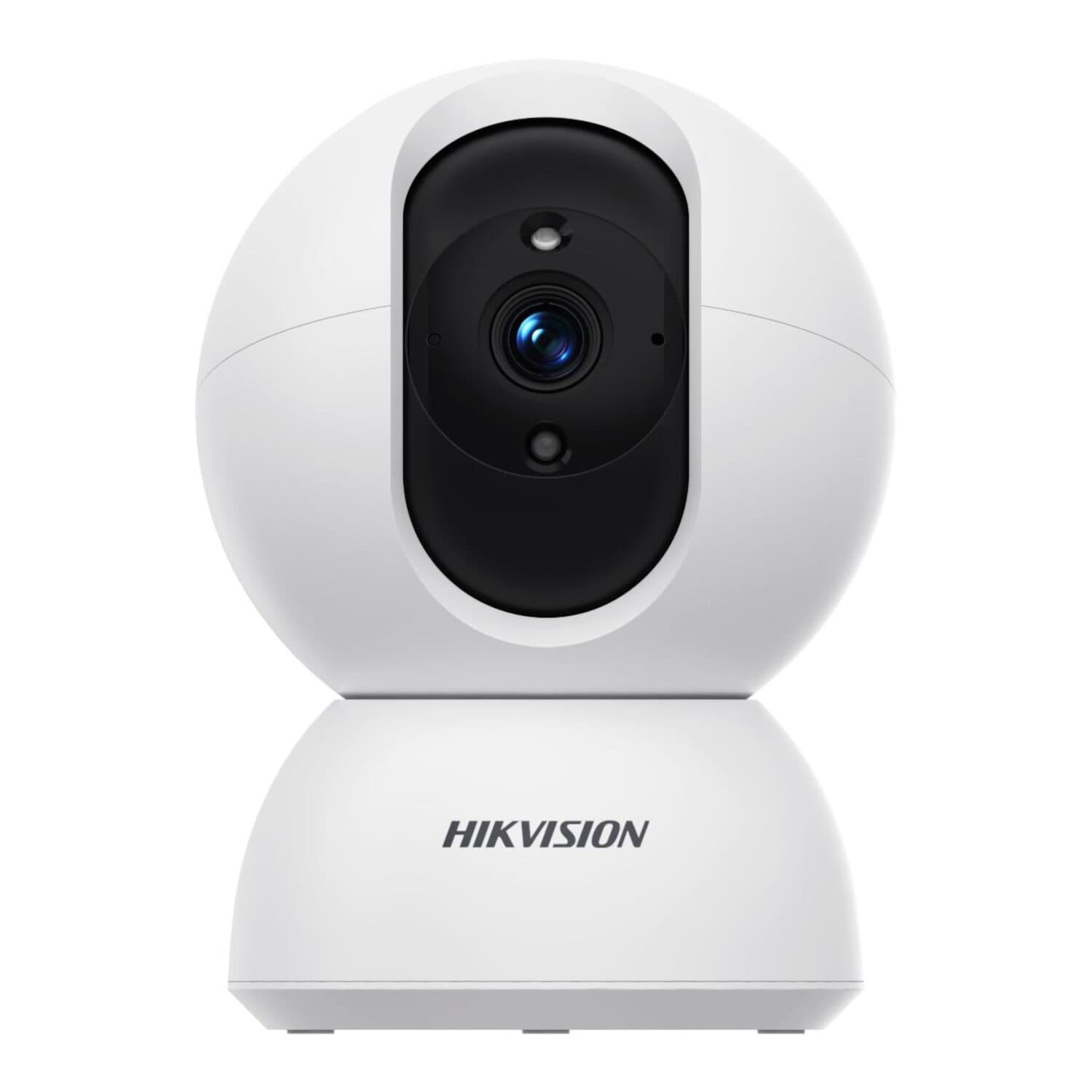

The Hikvision Network PT Security Camera, 4mm Lens, 2MP is a high-performance surveillance solution designed for homes, businesses, and professional security applications. With its 2MP resolution and EXIR 2.0 infrared technology, this camera provides crystal-clear imaging even in low-light conditions, ensuring 24/7 security monitoring.
This Wi-Fi-enabled camera offers seamless installation, eliminating the need for complex wiring. It features built-in two-way audio, allowing users to communicate in real time, making it ideal for home security, office surveillance, and retail monitoring. The H.265 compression technology ensures efficient storage management while maintaining superior image quality.
Built to withstand harsh environments, the IP66-rated weatherproof design protects against dust and water, making it suitable for indoor and outdoor installations. The adjustable pan, tilt, and rotation functions provide flexible positioning for maximum coverage. Additionally, the integrated microSD slot supports up to 512GB, allowing for extensive onboard video storage without the need for external storage devices.
With compatibility for Hik-Connect, iVMS-4200, and other major security platforms, users can remotely monitor live feeds, receive real-time alerts, and manage settings from anywhere. Whether for home protection, office security, or commercial surveillance, the Hikvision Network PT Security Camera, 4mm Lens, 2MP is an advanced, feature-packed solution designed for reliability and ease of use.
FEATURES:
- 2MP resolution (1920 × 1080) for sharp, clear video
- EXIR 2.0 Infrared Technology provides enhanced night vision with a 30m IR range
- Supports Wi-Fi connectivity
- H.265 Video Compression: Saves storage space while maintaining video quality
- Two-way audio for real-time communication
- Ip66-rated dust and water-resistant for outdoor and indoor use
- Motion Detection & Alerts in real-time
- MicroSD card slot supports up to 512GB for local video storage
- Compatible with Hik-Connect, iVMS-4200, and major security platforms
SPECIFICATIONS:
- Camera:
- Image Sensor: 1/3" Progressive Scan CMOS
- Max. Resolution: 1920 × 1080 (2 MP)
- Min. Illumination: Colour: 0.005 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/10000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
- Lens:
- Lens Type: Fixed focal lens, 4 mm
- Focal Length & FOV:4 mm: Horizontal FOV 75°, Vertical FOV 45°, Diagonal FOV 85°
- Aperture: F2.0
- Lens Mount: M12
- Illuminator:
- Supplement Light Type: IR
- IR Wavelength: 850 nm
- Supplement Light Range: Up to 10 m
- Video:
- Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 × 432) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 × 432)
- Sub-Stream: 50 Hz: 50 Hz: 25 fps (768 × 432, 512 × 288) 60 Hz: 30 fps (768 × 432, 512 × 288)
- Video Compression: Main Stream: Main stream: H.265/H.264 Sub-stream: H.265/H.264
- Video Bit Rate: Up to 1 M bps
- Frame Rate: Max.15 fps - Self-Adaptive during network transmission
- Audio:
- Audio Compression: G.711/AAC-LC
- Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate: 8 kHz/16 kHz
- Environment Noise Filtering: Yes
- Network:
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv4, UDP, Bonjour, SSL/TLS
- Simultaneous Live View: Up to 4 channels
- API: ONVIF (Profile S, Profile T, Profile G), SDK
- User/Host: Administrator
- Security: Password protection, HTTPS encryption, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE for Open Network Video Interface
- Client: iVMS-4200, Hik-Connect, Hik-Partner-Pro
- Wi-Fi:
- Transfer Rate: 11b: up to 54 Mbps, 11g: up to 54 Mbps, 11n: up to 150 Mbps
- Encryption Mode: WPA-PSK/WPA2-PSK
- Frequency Range: 2.412 GHz to 2.472 GHz
- Channel Bandwidth: 20 MHz
- Wireless Range: Up to 50 m (performance varies based on environment)
- Image:
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software
- Day/Night Switch: Auto
- Wide Dynamic Range (WDR): Digital WDR
- Privacy Mask: 4 programmable polygon privacy masks
- Interface:
- Built-in Microphone: Yes
- Built-in Speaker: Yes
- On-Board Storage: Built-in memory card slot, support microSD card, up to 512 GB
- Reset Key: Yes
- Ethernet Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
- General:
- Material: Plastic
- Power: 5 VDC ± 10%, 1 A, max. 5 W
- Storage Conditions: -10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
- Startup & Operating Conditions: -10 °C to 45 °C (14 °F to 113 °F). Humidity 95% or less (non-condensing)
- General Function: Heartbeat, mirror
- Flashing Light: Red and Blue
- Dimension: Ø 8 × 12.2 cm
- Weight: Approx. 216 g
- Protection: IP66
WHAT’S IN THE BOX:
- Hikvision Network PT Security Camera, 4mm Lens, 2MP x1
- User Manual x1
